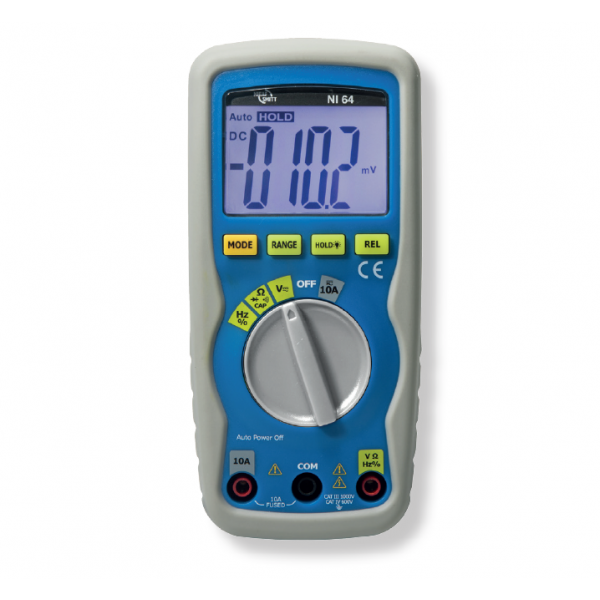

Nieaf Smitt NI 64 Compacte digitale multimeter
Artikelnr:
NIE32400
€ 79,00
excl. BTW
(
€ 95,59
Incl. BTW
)
excl. BTW
(
Incl. BTW
)
(
Incl. BTW
)
Vandaag verzonden
Omschrijving
Compacte digitale multimeter
De NI 64 is een gebruiksvriendelijke, compacte en ergonomische multimeter. De multimeter is uitstekend geschikt voor service toepassingen en beschikt over een groot en duidelijk display met achtergrondverlichting.
Kenmerken
- AC/DC spanning tot 600 V
- AC/DC stroom tot 10 A
- Weerstand, capaciteit en frequentie meting
- Doorgangs- / diode test
- Duty cycle
- Verlicht display
Inclusief
- Handleiding
- Meetsnoeren
- Draagtas
- Batterij
| Multimeters NIEAF SMITT | |||||
| EazyMM | NI 64 | NI 74 | NI 98III | NI 405plus | |
| Resolutie | 5000 d | 4000 d | 6000 d | 6000 d | 40.000 d |
| Spanning AC/DC | •/• | •/• | •/• | •/• | •/• |
| Weerstand | • | • | • | • | • |
| Stroom AC/DC | •/- | •/• | •/• | •/• | •/• |
| True RMS | • | • | • | ||
| Doorgang | • | • | • | • | • |
| Frequentie | • | • | • | • | • |
| Capaciteit | • | • | • | • | • |
| Isolatie weerstand | • | ||||
| Contactloze spanning detectie | • | • | |||
| Overspannings-categorie | CAT VI 600V | CAT III 600V | CAT VI 600V | CAT VI 600V | CAT VI 600V |
Specificaties
Artikelnummer
- NIE32400
EAN
- 08719075579411
Indicatie
- Digitaal
Analogue bar graph display
- Nee
Scaling bar graph linear
- Nee
Scaling bar graph logarithmic
- Nee
Analogue bar graph display analogue/logarithmical
- Nee
Multiple display
- Nee
With display backlight
- Ja
Measuring range selection
- Manual/automatic
Lowest resolution, AC voltage
- 0.1 mV
Lowest resolution, DC voltage
- 0.1 mV
Lowest resolution, AC current
- 1000 µA
Lowest resolution, DC current
- 1000 µA
Temperature measurement
- Nee
Milliohm measurement with 4 wire technique (Kelvin connection)
- Nee
Lowest resolution, resistance
- 0.1 Ohm
Temperature measurement RTD
- Nee
Temperature measurement
- Nee
Temperature measurement TC
- Nee
Capacitance measurement
- Ja
Lowest resolution, capacitance
- 0.01 µF
Frequency measurement
- Ja
Lowest resolution, frequency
- 0.001 Hz
Resistance test/diode test
- Ja
Nominal test voltage 10 V
- Nee
Nominal test voltage 50 V
- Nee
Nominal test voltage 100 V
- Nee
Nominal test voltage 250 V
- Nee
Nominal test voltage 500 V
- Nee
Nominal test voltage 1000 V
- Nee
Cable length measurement
- Nee
Cable symmetry testing for two wire connections a-b-E
- Nee
Power and energy measurement
- Nee
Harmonics analysis/power quality
- Nee
With decibel measurement (dB)
- Nee
Relative value measurement
- Ja
Inductance measurement
- Nee
With conductivity measurement
- Nee
Continuity test
- Ja
Data hold
- Ja
Max. value storage
- Nee
Min. value storage
- Nee
Peak value memory
- Nee
High voltage test for motor windings
- Nee
True RMS measurement
- Nee
Duty cycle measurements
- Ja
Rotational speed measuring
- Nee
Meetwaardegeheugen
- Nee
Interface
- Nee
Bluetooth interface
- Nee
IR interface
- Nee
Automatic circuit breaker
- Nee
Max. voltage measuring circuit category
- 600 V
Explosion-tested version
- Nee
Degree of protection (IP)
- IP40
Calibration according to ISO/IEC 17025
- Nee
Calibration certificate according to DAkkS
- Nee
COFRAC certified
- Nee
Max. resistance measuring range
- 40 MOhm
Max. voltage measuring range, DC
- 600 V
Max. current measuring range, DC
- 10 A
Max. frequency measuring range
- 10 kHz
Max. capacitance measuring range
- 100 µF
Max. current measuring range, AC
- 10 A
Max. voltage measuring range, AC
- 600 V
Measuring circuit category
- CAT IV
