Benning MM 5-2 Digitale multimeter
Artikelnr:
BEN10228
€ 162,00
excl. BTW
(
€ 196,02
Incl. BTW
)
excl. BTW
(
Incl. BTW
)
(
Incl. BTW
)
Omschrijving

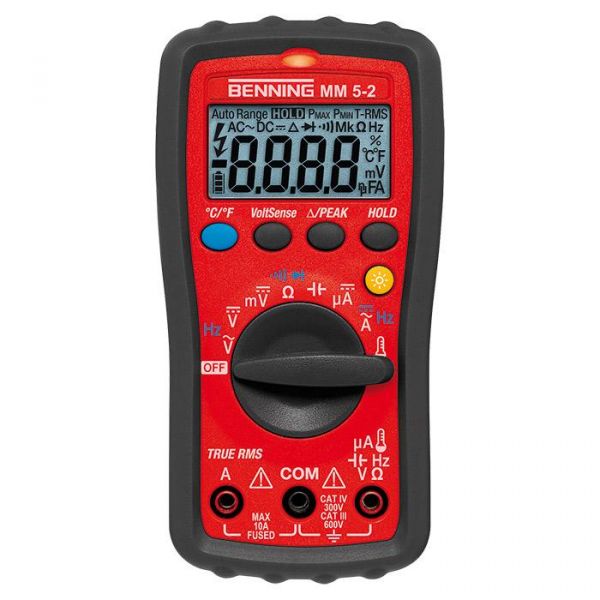

BENNING MM 5-2 Digitale Multimeter TRUE RMS
TRUE RMS digitale multimeter met VoltSense functie, microampère DC bereik, temperatuurmeting en verlicht LCD display
Rubber beschermingshoes met geïntegreerde magnetische houder
- Aanduidingsomvang: LCD display 6000 Counts
- Nauwkeurigheid: 0,5 %
- Spanning AC: 0,1 mV - 600 V
- Spanning DC: 0,1 mV - 600 V
- Stroom AC: 1 mA - 10 A
- Stroom DC: 0,1 uA - 10 A
- Weerstand: 0,1 Ohm - 40 MOhm
- Doorgangs- en diodetest
- Frequentie: 0,01 Hz - 50 kHz
- Capaciteit: 0,01 nF - 1 mF
- Temperatuur: -40 °C tot +400 °C
- VoltSense: contactloze spanningsindicatie en kabelbreukcontrole
- Geheugenfunctie: HOLD, PEAK
- Meetmethode: TRUE RMS
- Automatische meetbereikkeuze, automatische uitschakeling
- LCD display met verlichting
- Meetcategorie CAT lll 600 V
- Getest en goedgekeurd volgens: IEC/EN 61010-1 (DIN VDE 0411-1)
- Afmetingen: 150 x 77 x 44 mm (met beschermingshoes)
- Gewicht: 310 gram (met beschermingshoes)
- Inclusief rubber beschermingshoes, magnetische houder, tas, veiligheidsmeetsnoeren, draadtemperatuursensor, batterijen en gebruiksaanwijzing
Specificaties
Artikelnummer
- BEN10228
EAN
- 04014651440715
Indicatie
- Digitaal
Analogue bar graph display
- Nee
Scaling bar graph linear
- Nee
Scaling bar graph logarithmic
- Nee
Analogue bar graph display analogue/logarithmical
- Nee
Multiple display
- Nee
With display backlight
- Ja
Measuring range selection
- Automatic
Lowest resolution, AC voltage
- 0.1 mV
Lowest resolution, DC voltage
- 0.1 mV
Lowest resolution, AC current
- 1000 µA
Lowest resolution, DC current
- 0.1 µA
Temperature measurement
- Nee
Milliohm measurement with 4 wire technique (Kelvin connection)
- Nee
Lowest resolution, resistance
- 0.1 Ohm
Temperature measurement RTD
- Nee
Temperature measurement
- Ja
Temperature measurement TC
- Ja
Lowest resolution temperature
- 0.1 °C
Capacitance measurement
- Ja
Lowest resolution, capacitance
- 0.00001 µF
Frequency measurement
- Ja
Lowest resolution, frequency
- 0.01 Hz
Resistance test/diode test
- Ja
Measurement principle
- True root mean square
Relative measurement accuracy
- 0.5 %
Nominal test voltage 10 V
- Nee
Nominal test voltage 50 V
- Nee
Nominal test voltage 100 V
- Nee
Nominal test voltage 250 V
- Nee
Nominal test voltage 500 V
- Nee
Nominal test voltage 1000 V
- Nee
Cable length measurement
- Nee
Cable symmetry testing for two wire connections a-b-E
- Nee
Power and energy measurement
- Nee
Harmonics analysis/power quality
- Nee
With decibel measurement (dB)
- Nee
Relative value measurement
- Ja
Inductance measurement
- Nee
With conductivity measurement
- Nee
Continuity test
- Ja
Data hold
- Ja
Max. value storage
- Nee
Min. value storage
- Nee
Peak value memory
- Ja
High voltage test for motor windings
- Nee
True RMS measurement
- Nee
Duty cycle measurements
- Nee
Rotational speed measuring
- Nee
Meetwaardegeheugen
- Nee
Interface
- Nee
Bluetooth interface
- Nee
IR interface
- Nee
Automatic circuit breaker
- Nee
Max. voltage measuring circuit category
- 600 V
Explosion-tested version
- Nee
Calibration according to ISO/IEC 17025
- Nee
Calibration certificate according to DAkkS
- Nee
COFRAC certified
- Nee
Current supply
- Battery
Max. resistance measuring range
- 40 MOhm
Max. voltage measuring range, DC
- 600 V
Max. current measuring range, DC
- 10 A
Max. frequency measuring range
- 50 kHz
Max. capacitance measuring range
- 1000 µF
Max. current measuring range, AC
- 10 A
Max. voltage measuring range, AC
- 600 V
Max. temperature measuring range
- 400 °C
Measuring circuit category
- CAT III
