Chauvin Arnoux MA193-250 Flexibele stroomsonde

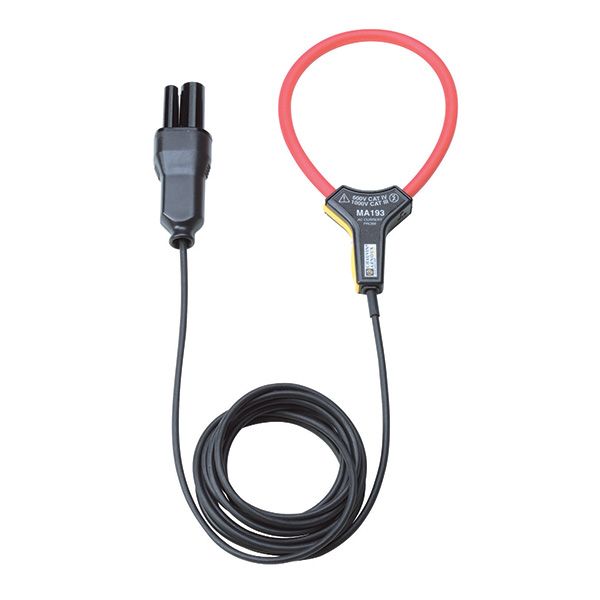

The MiniFlex® MA193 flexible current sensor can be used to measure the current in a cable without opening the circuit. It also serves to isolate the user from hazardous voltages in the circuit. This current sensor should only be used only with C.A 82XX, C.A 83XX, C.A 84XX and PEL 1XX analysers. Specifications Measurement range: 100 mA - 10 000 A. Clamping diameter: 70 mm. Sensor length: 250 mm. Connection cable length: 3 m. Dimensions (L x W x H): approx. 130 x 80 x 12 mm. Weight: approx. 60 g. Protection : IP 50 per IEC 60529. Electrical safety as per IEC 61010-2-032: 600V en cat. IV or 1000V en cat. III. Supplied in a cardboard box with a Velcro fastener to secure the lead when not in use, a user manual in 5 languages, a verification certificate.
