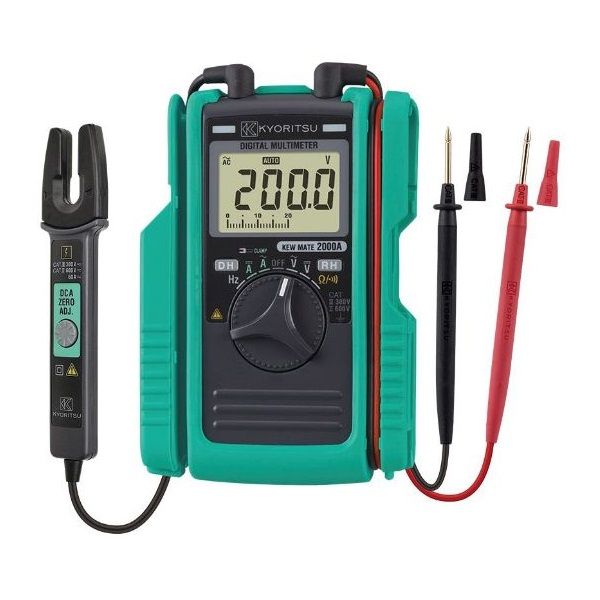

Kyoritsu 2000A Digitale Multimeter met stroomtang 6mm
Artikelnr:
KYO32670
€ 117,53
excl. BTW
(
€ 142,21
Incl. BTW
)
excl. BTW
(
Incl. BTW
)
(
Incl. BTW
)
Omschrijving
De Kyoritsu 2000A is een digitale multimeter met geïntegreerde AC/DC stroomvork tot 60A.
Kenmerken:
- AC/DC spanningsmeting tot 600V
- AC/DC stroommeting tot 60A met open stroombek
- Weerstandsmeting tot 34MΩ
- Frequentiemeting tot 300kHz
- Continuïteitstest
- 3400 Counts met bargraph display
- Data Hold en automatische slaapstand
- Zakformaat en robuust ontwerp
In de doos:
- Kyoritsu 2000A Digitale multimeter met stroomtang
- 2 Batterijen 1,5V (R03)
- Handleiding
Specificaties
Artikelnummer
- KYO32670
EAN
- 04560187066702
Indicatie
- Digitaal
Analogue bar graph display
- Nee
Scaling bar graph linear
- Nee
Scaling bar graph logarithmic
- Nee
Analogue bar graph display analogue/logarithmical
- Nee
Multiple display
- Nee
With display backlight
- Nee
Measuring range selection
- Automatic
Lowest resolution, AC voltage
- 1 mV
Lowest resolution, DC voltage
- 0.1 mV
Lowest resolution, AC current
- Other
Lowest resolution, DC current
- Other
Temperature measurement
- Nee
Milliohm measurement with 4 wire technique (Kelvin connection)
- Nee
Lowest resolution, resistance
- 0.1 Ohm
Temperature measurement RTD
- Nee
Temperature measurement
- Nee
Temperature measurement TC
- Nee
Capacitance measurement
- Nee
Frequency measurement
- Ja
Lowest resolution, frequency
- 1 Hz
Resistance test/diode test
- Nee
Nominal test voltage 10 V
- Nee
Nominal test voltage 50 V
- Nee
Nominal test voltage 100 V
- Nee
Nominal test voltage 250 V
- Nee
Nominal test voltage 500 V
- Nee
Nominal test voltage 1000 V
- Nee
Cable length measurement
- Nee
Cable symmetry testing for two wire connections a-b-E
- Nee
Power and energy measurement
- Nee
Harmonics analysis/power quality
- Nee
With decibel measurement (dB)
- Nee
Relative value measurement
- Nee
Inductance measurement
- Nee
With conductivity measurement
- Nee
Continuity test
- Ja
Data hold
- Ja
Max. value storage
- Nee
Min. value storage
- Nee
Peak value memory
- Nee
High voltage test for motor windings
- Nee
True RMS measurement
- Nee
Duty cycle measurements
- Nee
Rotational speed measuring
- Nee
Meetwaardegeheugen
- Nee
Interface
- Nee
Bluetooth interface
- Nee
IR interface
- Nee
Automatic circuit breaker
- Nee
Max. voltage measuring circuit category
- 300 V
Explosion-tested version
- Nee
Degree of protection (IP)
- Other
Calibration according to ISO/IEC 17025
- Nee
Calibration certificate according to DAkkS
- Nee
COFRAC certified
- Nee
Max. resistance measuring range
- 34 MOhm
Max. voltage measuring range, DC
- 600 V
Max. current measuring range, DC
- 60 A
Max. frequency measuring range
- 300 kHz
Max. current measuring range, AC
- 60 A
Max. voltage measuring range, AC
- 600 V
Measuring circuit category
- CAT III
