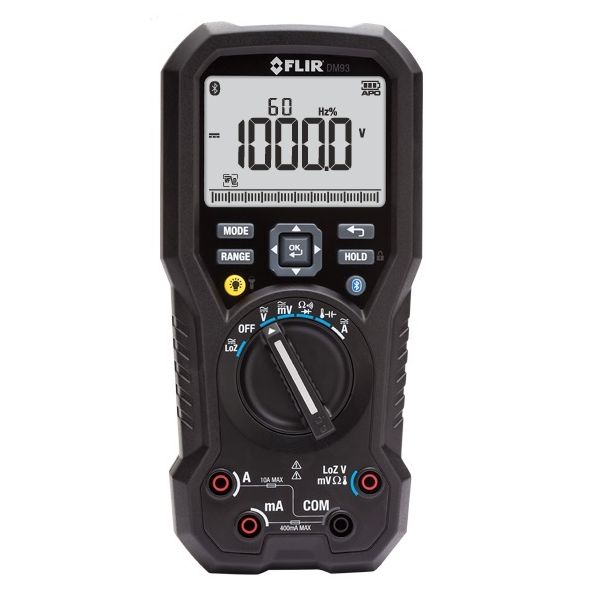

Flir DM93 Digitale multimeter
Artikelnr:
FLI32566
€ 409,00
excl. BTW
(
€ 494,89
Incl. BTW
)
excl. BTW
(
Incl. BTW
)
(
Incl. BTW
)
Omschrijving
FLIR DM93 Digitale industriële TRMS multimeter
De FLIR DM93 is een geavanceerde digitale TRMS multimeter die speciaal ontworpen is voor VFD metingen. Deze robuuste multimeter is zeer geschikt voor intensief industrieel gebruik. Kenmerken:- Bereik AC/DC spanning: 1000V
- Bereik AC/DC stroom: 10.000A
- VFD spanning: 1000V
- Weerstand: 40MΩ
- Continuity Threshold: 30Ω
- Frequentie: 100.00kHz
- Capaciteit: 40.00 mF
- Temperatuur bereik: -200 tot 1200 °C (-328 tot 2192 °F)
- Diode test: 2V
- Bereik Bluetooth: 10 m
- Compatibel met MeterLink
- Voorzien van VFD mode, LoZ mode, analoge bargraph, automatische AC/DC instelling, min/max/average recording, auto power off, hold, relative, peak hold, store, recall, display counts: 40.000 en data recording: 20.000 Pts (max. 125 dagen)
- Veiligheidscategorie: CAT IV 600V, CAT III 1000V
In de doos:
- FLIR DM93 Digitale industriële TRMS multimeter
- 6 AAA Batterijen
- CAT IV silicone meetsnoeren, type K
- Temperatuur probe (400°F, 204°C)
- Magnetische ophanglus
- Gebruikershandleiding/cd
Specificaties
Artikelnummer
- FLI32566
EAN
- 00793950370933
Indicatie
- Analoog/Digitaal
Analogue bar graph display
- Nee
Scaling bar graph linear
- Nee
Scaling bar graph logarithmic
- Nee
Analogue bar graph display analogue/logarithmical
- Nee
Multiple display
- Ja
With display backlight
- Ja
Measuring range selection
- Manual/automatic
Lowest resolution, AC voltage
- 0.001 mV
Lowest resolution, DC voltage
- 0.001 mV
Max. voltage measuring range, AC/DC
- 1000 V
Lowest resolution, AC/DC voltage
- 0.001 mV
Lowest resolution, AC current
- 1 µA
Lowest resolution, DC current
- 1 µA
Temperature measurement
- Nee
Max. current measuring range, AC/DC
- 10 A
Lowest resolution, AC/DC current
- 1 µA
Milliohm measurement with 4 wire technique (Kelvin connection)
- Nee
Lowest resolution, resistance
- 0.01 Ohm
Temperature measurement RTD
- Nee
Temperature measurement
- Ja
Temperature measurement TC
- Ja
Lowest resolution temperature
- Other
Capacitance measurement
- Ja
Lowest resolution, capacitance
- 0.00001 µF
Frequency measurement
- Ja
Lowest resolution, frequency
- 0.001 Hz
Resistance test/diode test
- Ja
Nominal test voltage 10 V
- Nee
Nominal test voltage 50 V
- Nee
Nominal test voltage 100 V
- Nee
Nominal test voltage 250 V
- Nee
Nominal test voltage 500 V
- Nee
Nominal test voltage 1000 V
- Nee
Cable length measurement
- Nee
Cable symmetry testing for two wire connections a-b-E
- Nee
Power and energy measurement
- Nee
Harmonics analysis/power quality
- Nee
With decibel measurement (dB)
- Nee
Relative value measurement
- Ja
Inductance measurement
- Nee
With conductivity measurement
- Nee
Continuity test
- Ja
Data hold
- Ja
Max. value storage
- Ja
Min. value storage
- Ja
Peak value memory
- Ja
High voltage test for motor windings
- Nee
True RMS measurement
- Ja
Duty cycle measurements
- Nee
Rotational speed measuring
- Nee
Meetwaardegeheugen
- Ja
Interface
- Nee
Bluetooth interface
- Ja
IR interface
- Nee
Automatic circuit breaker
- Nee
Max. voltage measuring circuit category
- 600 V
Explosion-tested version
- Nee
Degree of protection (IP)
- IP54
Calibration according to ISO/IEC 17025
- Nee
Calibration certificate according to DAkkS
- Nee
COFRAC certified
- Nee
Current supply
- Battery
Max. resistance measuring range
- 40 MOhm
Max. voltage measuring range, DC
- 1000 V
Max. current measuring range, DC
- 10 A
Max. frequency measuring range
- 4000 kHz
Max. capacitance measuring range
- 40000 µF
Max. current measuring range, AC
- 10 A
Max. voltage measuring range, AC
- 1000 V
Max. temperature measuring range
- 1200 °C
Measuring circuit category
- CAT IV
