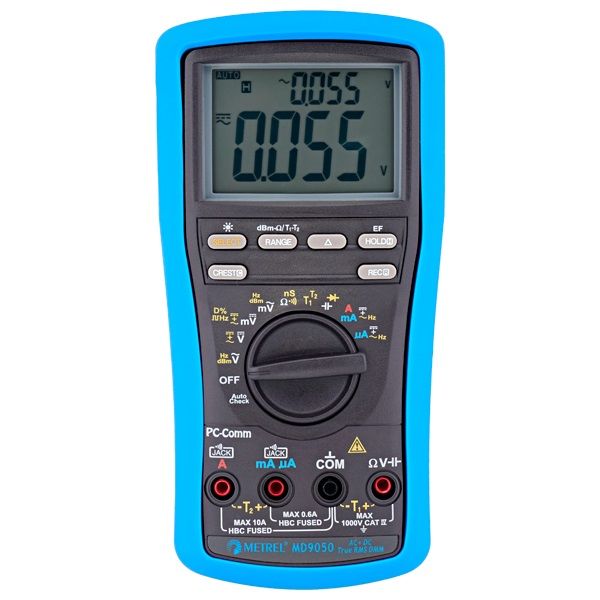

Metrel multimeter 20kHz TRMS U,I,R,C,F,T1+T2,D.PC-link Cat.I
Artikelnr:
MET603886
€ 280,00
excl. BTW
(
€ 338,80
Incl. BTW
)
excl. BTW
(
Incl. BTW
)
(
Incl. BTW
)
Omschrijving
Metrel multimeter 20kHz TRMS U,I,R,C,F,T1+T2,D.PC-link Cat.I
Specificaties
Artikelnummer
- MET603886
EAN
- 08712251303145
Indicatie
- Digitaal
Analogue bar graph display
- Nee
Scaling bar graph linear
- Nee
Scaling bar graph logarithmic
- Nee
Analogue bar graph display analogue/logarithmical
- Nee
Multiple display
- Ja
With display backlight
- Nee
Measuring range selection
- Automatic
Lowest resolution, AC voltage
- 0.01 mV
Lowest resolution, DC voltage
- 0.01 mV
Lowest resolution, AC current
- 0.01 µA
Lowest resolution, DC current
- 0.01 µA
Temperature measurement
- Ja
Milliohm measurement with 4 wire technique (Kelvin connection)
- Nee
Lowest resolution, resistance
- 0.1 Ohm
Temperature measurement RTD
- Nee
Temperature measurement
- Nee
Temperature measurement TC
- Nee
Lowest resolution temperature
- Other
Capacitance measurement
- Ja
Lowest resolution, capacitance
- Other
Frequency measurement
- Nee
Lowest resolution, frequency
- Other
Resistance test/diode test
- Ja
Nominal test voltage 10 V
- Nee
Nominal test voltage 50 V
- Nee
Nominal test voltage 100 V
- Nee
Nominal test voltage 250 V
- Nee
Nominal test voltage 500 V
- Nee
Nominal test voltage 1000 V
- Nee
Cable length measurement
- Nee
Cable symmetry testing for two wire connections a-b-E
- Nee
Power and energy measurement
- Nee
Harmonics analysis/power quality
- Nee
With decibel measurement (dB)
- Nee
Relative value measurement
- Ja
Inductance measurement
- Nee
With conductivity measurement
- Ja
Continuity test
- Ja
Data hold
- Ja
Max. value storage
- Ja
Min. value storage
- Ja
Peak value memory
- Ja
High voltage test for motor windings
- Nee
True RMS measurement
- Ja
Duty cycle measurements
- Nee
Rotational speed measuring
- Nee
Meetwaardegeheugen
- Nee
Interface
- Ja
Bluetooth interface
- Nee
IR interface
- Nee
Automatic circuit breaker
- Nee
Max. voltage measuring circuit category
- 1000 V
Explosion-tested version
- Nee
Calibration according to ISO/IEC 17025
- Nee
Calibration certificate according to DAkkS
- Nee
COFRAC certified
- Nee
Max. resistance measuring range
- 60 MOhm
Max. voltage measuring range, DC
- 1000 V
Max. current measuring range, DC
- 10 A
Max. frequency measuring range
- 20 kHz
Max. capacitance measuring range
- 25000 µF
Meetbereik isolatieweerstand
- 0.6 - 60 MOhm
Max. current measuring range, AC
- 10 A
Max. voltage measuring range, AC
- 1000 V
Max. temperature measuring range
- 1000 °C
Measuring circuit category
- CAT IV
