Nieaf-Smitt Elektro basis kit
Artikelnr:
NIE515837
€ 195,00
excl. BTW
(
€ 235,95
Incl. BTW
)
excl. BTW
(
Incl. BTW
)
(
Incl. BTW
)
Omschrijving

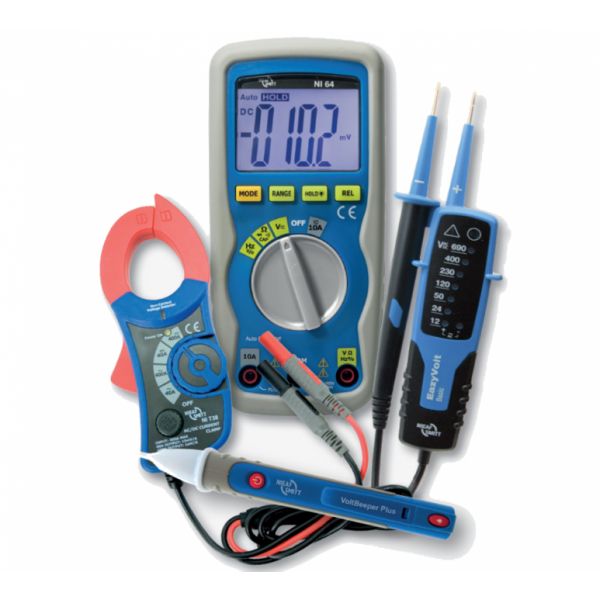

Nieaf-Smitt Elektro basis kit
Multimeter basisset
Met deze praktische basisset kan veilig spanning en stroom worden gemeten.
Deze set bestaat uit
- NI 64 multimeter
- EazyVolt Basic spanningtester
- NI T38 stroomtangadapter
- Voltbeeper plus - contactloze spanningsdetector
Specificaties
Artikelnummer
- NIE515837
EAN
- 08720168242044
Indicatie
- Digitaal
Analogue bar graph display
- Nee
Scaling bar graph linear
- Nee
Scaling bar graph logarithmic
- Nee
Analogue bar graph display analogue/logarithmical
- Nee
Multiple display
- Nee
With display backlight
- Ja
Measuring range selection
- Manual/automatic
Lowest resolution, AC voltage
- 0.1 mV
Lowest resolution, DC voltage
- 0.1 mV
Lowest resolution, AC current
- 1000 µA
Lowest resolution, DC current
- 1000 µA
Temperature measurement
- Nee
Milliohm measurement with 4 wire technique (Kelvin connection)
- Nee
Lowest resolution, resistance
- 0.1 Ohm
Temperature measurement RTD
- Nee
Temperature measurement
- Nee
Temperature measurement TC
- Nee
Capacitance measurement
- Ja
Lowest resolution, capacitance
- 0.01 µF
Frequency measurement
- Ja
Lowest resolution, frequency
- 0.001 Hz
Resistance test/diode test
- Ja
Nominal test voltage 10 V
- Nee
Nominal test voltage 50 V
- Nee
Nominal test voltage 100 V
- Nee
Nominal test voltage 250 V
- Nee
Nominal test voltage 500 V
- Nee
Nominal test voltage 1000 V
- Nee
Cable length measurement
- Nee
Cable symmetry testing for two wire connections a-b-E
- Nee
Power and energy measurement
- Nee
Harmonics analysis/power quality
- Nee
With decibel measurement (dB)
- Nee
Relative value measurement
- Ja
Inductance measurement
- Nee
With conductivity measurement
- Nee
Continuity test
- Ja
Data hold
- Ja
Max. value storage
- Nee
Min. value storage
- Nee
Peak value memory
- Nee
High voltage test for motor windings
- Nee
True RMS measurement
- Nee
Duty cycle measurements
- Ja
Rotational speed measuring
- Nee
Meetwaardegeheugen
- Nee
Interface
- Nee
Bluetooth interface
- Nee
IR interface
- Nee
Automatic circuit breaker
- Nee
Max. voltage measuring circuit category
- 600 V
Explosion-tested version
- Nee
Degree of protection (IP)
- IP40
Calibration according to ISO/IEC 17025
- Nee
Calibration certificate according to DAkkS
- Nee
COFRAC certified
- Nee
Max. resistance measuring range
- 40 MOhm
Max. voltage measuring range, DC
- 600 V
Max. current measuring range, DC
- 400 A
Max. frequency measuring range
- 10 kHz
Max. capacitance measuring range
- 100 µF
Max. current measuring range, AC
- 400 A
Max. voltage measuring range, AC
- 600 V
Measuring circuit category
- CAT IV
