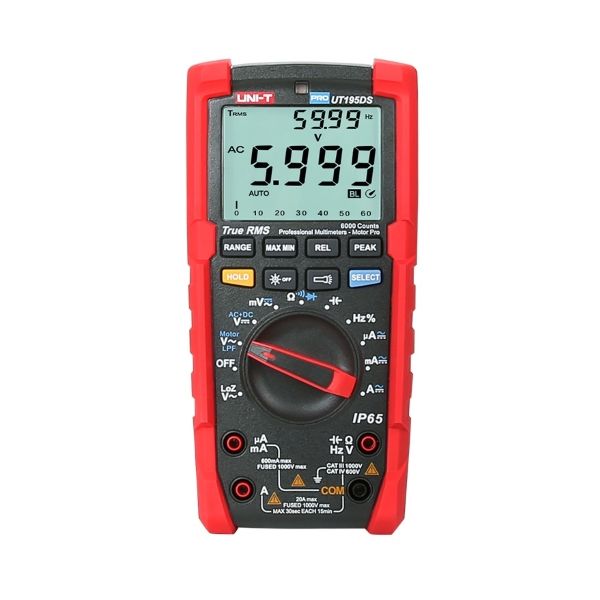

Uni-T UT195DS Digitale multimeter True RMS met draaiveld
Artikelnr:
UNI32588
€ 199,33
excl. BTW
(
€ 241,19
Incl. BTW
)
excl. BTW
(
Incl. BTW
)
(
Incl. BTW
)
Omschrijving
UT195DS True MS multimeter
Professionele robuuste IP65 True RMS multimeter met draaiveldmeting en Peak Hold.
Automatische of handmatige bereikkeuze
Bereik DC spanning tot 1000V
Bereik AC spanning tot 750V
Bereik AC/DC stroom tot 20A
Weerstand tot 60MΩ
Capaciteit tot 60mF
Frequentie tot 40MHz
LoZ ACV tot 600V
Motor fase meting tot 600V
Duty Cycle: 0,1% tot 99,9%
Valbestendig tot 2 meter
Automatische LCD achtergrondverlichting met lichtsensor
Inclusief extra functies als o.a. Peak Hold, zaklamp, diodetest, doorbeltest, MAX/MIN, Data Hold, relatieve meting, analoge bar graph indicatie etc.
Veiligheidscategorie: CAT III 1000V, CAT IV 600V
In de doos:
UT195DS True RMS multimeter
Meetsnoeren
Batterij
Draagtas
Handleiding
Specificaties
Artikelnummer
- UNI32588
EAN
- 06935750519547
Indicatie
- Analoog/Digitaal
Analogue bar graph display
- Ja
Scaling bar graph linear
- Ja
Scaling bar graph logarithmic
- Nee
Analogue bar graph display analogue/logarithmical
- Nee
Multiple display
- Ja
With display backlight
- Ja
Measuring range selection
- Manual/automatic
Lowest resolution, AC voltage
- 0.1 mV
Lowest resolution, DC voltage
- 0.1 mV
Lowest resolution, AC current
- 0.1 µA
Lowest resolution, DC current
- 0.1 µA
Temperature measurement
- Nee
Milliohm measurement with 4 wire technique (Kelvin connection)
- Nee
Lowest resolution, resistance
- 0.1 Ohm
Temperature measurement RTD
- Nee
Temperature measurement
- Nee
Temperature measurement TC
- Nee
Capacitance measurement
- Ja
Lowest resolution, capacitance
- 0.001 µF
Frequency measurement
- Ja
Lowest resolution, frequency
- 0.01 Hz
Resistance test/diode test
- Ja
Nominal test voltage 10 V
- Nee
Nominal test voltage 50 V
- Nee
Nominal test voltage 100 V
- Nee
Nominal test voltage 250 V
- Nee
Nominal test voltage 500 V
- Nee
Nominal test voltage 1000 V
- Nee
Cable length measurement
- Nee
Cable symmetry testing for two wire connections a-b-E
- Nee
Power and energy measurement
- Nee
Harmonics analysis/power quality
- Nee
With decibel measurement (dB)
- Nee
Relative value measurement
- Ja
Inductance measurement
- Nee
With conductivity measurement
- Nee
Continuity test
- Ja
Data hold
- Ja
Max. value storage
- Ja
Min. value storage
- Ja
Peak value memory
- Ja
High voltage test for motor windings
- Nee
True RMS measurement
- Ja
Duty cycle measurements
- Ja
Rotational speed measuring
- Nee
Meetwaardegeheugen
- Nee
Interface
- Nee
Bluetooth interface
- Nee
IR interface
- Nee
Automatic circuit breaker
- Nee
Max. voltage measuring circuit category
- 600 V
Explosion-tested version
- Nee
Degree of protection (IP)
- IP65
Calibration according to ISO/IEC 17025
- Nee
Calibration certificate according to DAkkS
- Nee
COFRAC certified
- Nee
Max. resistance measuring range
- 60 MOhm
Max. voltage measuring range, DC
- 1000 V
Max. current measuring range, DC
- 20 A
Max. frequency measuring range
- 40000 kHz
Max. capacitance measuring range
- 60000 µF
Max. current measuring range, AC
- 20 A
Max. voltage measuring range, AC
- 750 V
Measuring circuit category
- CAT IV
