Schwabe CEE Aansluitkabel Neopreen 400V/16A IP44 5-polig H07RN-F 5x1,5 3m
Artikelnr:
SCH516143
€ 17,88
excl. BTW
(
€ 21,63
Incl. BTW
)
excl. BTW
(
Incl. BTW
)
(
Incl. BTW
)
Omschrijving

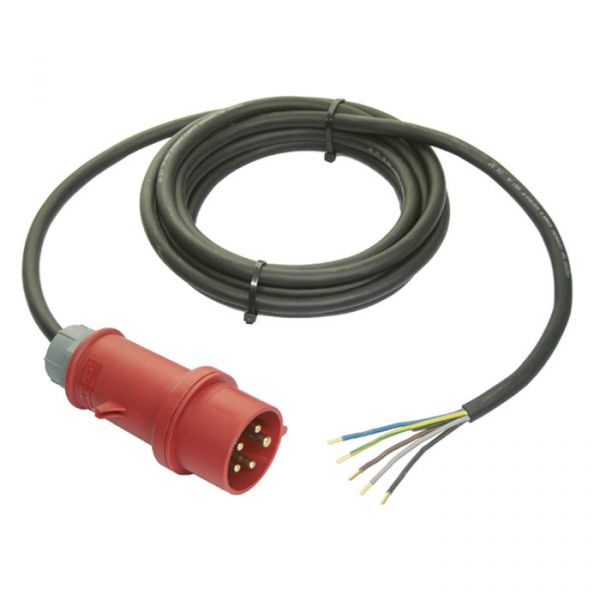

Schwabe CEE Aansluitkabel Neopreen 400 V 16 A 5-polig 3m H07RN-F 5G1,5 IP44
Zware neopreenkabel, goedgekeurd voor gebruik in de bouw- en agrarische sector
Olie-, UV- en ozonbestendig, geschikt voor temperaturen van -30°C tot +60°C
- 3m neopreen kabel H07RN-F 5G1,5 met 5-polige CEE contactstop
- Open kabeluiteinde: ca. 50 mm gestript met adereindhulzen
- Maximale belasting: 400 V, 16 A
- IP44: vreemde voorwerpen en spatwaterdicht
- Getest volgens: IEC 60309, DIN EN 50525-2
Specificaties
Artikelnummer
- SCH516143
EAN
- 04011160709777
Connection 1
- CEE plug (IEC 60309)
Cable entry connection 1
- Straight
Connection 2
- Cable end sleeve
System-oriented connector system
- Nee
Number of cores
- 5
Length
- 3 m
Material outer sheath
- Rubber
Oil resistant (acc. EN 60811-2-1)
- Nee
Temperature resistance
- -30 - 60 °C
Nominal current
- 16 A
Protective conductor
- Nee
Colour outer sheath
- Black
Spiralized cable
- Nee
With protective conductor
- Ja
With personal protection PRCD
- Nee
Degree of protection (IP)
- IP44
With cord switch
- Nee
Oil resistant according to EN IEC 60811-404
- Nee
Nominal voltage
- 450 - 750 V
Nominal cross section conductor
- 1.5 mm²
