Schwabe Geaarde Contactdoos blauw met deksel tbv kabelhaspel
Artikelnr:
SCH516193
€ 5,02
excl. BTW
(
€ 6,07
Incl. BTW
)
excl. BTW
(
Incl. BTW
)
(
Incl. BTW
)
Omschrijving

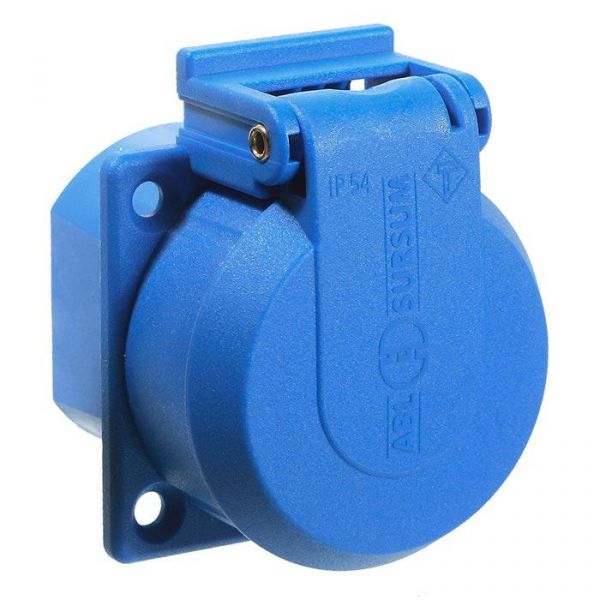

Schwabe Inbouw contactdoos geaard met deksel blauw
- Slag- en spatwaterdicht
- Veiligheidsscharnierdeksel, zelfsluitend
- Flensmaat: 50x50mm
- Gatafstand: 38x38mm
- Schroefcontact
- Getest volgens: DIN VDE 0620-1
- Beschermingsklasse: IP54
Specificaties
Artikelnummer
- SCH516193
EAN
- 04011160450853
Concurrently switching neutral conductor
- Nee
Protective contact
- Nee
Protective contact
- Earthing clips
Number of active contacts (round)
- 2
Protective earth pin round
- Nee
With signal lamp
- Nee
With built-in USB power supply
- Nee
Number of units
- 1
Number of phases
- 1
Imprint/indication
- Degree of protection (IP)
Connection type
- Screwed terminal
With hinged lid
- Ja
With enhanced contact protection
- Ja
Label space/information surface
- Ja
Colour
- Blue
Metallic colour
- Nee
Transparent
- Nee
Lockable
- Ja
Eject-mechanism
- Nee
Insulated mounting
- Ja
With function lighting
- Nee
With orientation lighting
- Nee
Switch-off function
- Nee
Over voltage protection
- Nee
Fault current protection
- Nee
With miniature fuse
- Nee
Mounting method
- Other
Type of fastening
- Mounting with screw
Material
- Plastic
Material quality
- Thermoplastic
Halogen free
- Nee
Surface protection
- Other
Surface finishing
- Matt
Anti-bacterial treatment
- Nee
With loop through function
- Ja
With on/off switch
- Nee
For heavy conditions (according to VDE)
- Nee
Rotated central insert
- Nee
Nominal voltage
- 220 V
Frequency
- 50 - 60 Hz
Suitable for degree of protection (IP)
- IP54
Device width
- 50 mm
Device height
- 61.4 mm
Device depth
- 54.4 mm
Min. depth of built-in installation box
- 27 mm
Compatible with Apple HomeKit
- Nee
Compatible with Amazon Alexa
- Nee
Compatible with Google Assistant
- Nee
IFTTT support available
- Nee
With Wi-Fi signal repeater
- Nee
With built-in bluetooth speaker
- Nee
For heavy conditions according to VDE
- Nee
Compliant with UK Building Regulations Part M
- Nee
Nominal current
- 16 A
Number of socket outlets
- 1
Socket outlets phase-separated
- Nee
Model
- Socket outlet CEE 7/3 (type F)
