Uni-T UT161D Digitale multimeter
Artikelnr:
UNI24612
€ 99,33
excl. BTW
(
€ 120,19
Incl. BTW
)
excl. BTW
(
Incl. BTW
)
(
Incl. BTW
)
Omschrijving

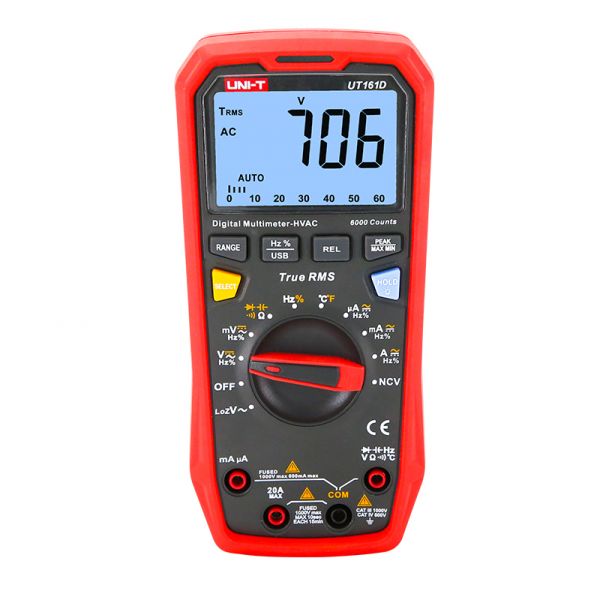

UNI-T UT161D TRMS Moderne autoranging multimeter met temperatuur
- Automatische of handmatige bereikkeuze
- Bereik AC/DC spanning tot 1000V
- Bereik AC/DC stroom tot 20A
- Temperatuurbereik: -40℃~1000℃
- Weerstand tot 220MΩ
- Capaciteit tot 220mF
- Frequentie tot 220MHz
- Frequentie respons AC bereiken: 45Hz tot 3kHz
- Duty Cycle: 0,1% tot 99,9%
- USB-communicatie, ingangsbescherming
- Inclusief extra functies als o.a. diodetest, doorbeltest, Max/Min/Relatieve meting, data hold, peak hold, NCV (hoorbaar/visueel alarm), LoZ ACV, achtergrondverlichting etc.
- Veiligheidscategorie: CAT III 1000V/CAT IV 600V
- UNI-T UT161D Multimeter
- Batterij
- Vergulde meetsnoeren
- USB-kabel
- Temperatuursonde
- Engelse handleiding
Specificaties
Artikelnummer
- UNI24612
EAN
- 06935750516164
Analogue bar graph display
- Nee
Scaling bar graph linear
- Nee
Scaling bar graph logarithmic
- Nee
Analogue bar graph display analogue/logarithmical
- Nee
Multiple display
- Nee
With display backlight
- Nee
Temperature measurement
- Nee
Milliohm measurement with 4 wire technique (Kelvin connection)
- Nee
Temperature measurement RTD
- Nee
Temperature measurement
- Nee
Temperature measurement TC
- Nee
Capacitance measurement
- Nee
Frequency measurement
- Nee
Resistance test/diode test
- Nee
Nominal test voltage 10 V
- Nee
Nominal test voltage 50 V
- Nee
Nominal test voltage 100 V
- Nee
Nominal test voltage 250 V
- Nee
Nominal test voltage 500 V
- Nee
Nominal test voltage 1000 V
- Nee
Cable length measurement
- Nee
Cable symmetry testing for two wire connections a-b-E
- Nee
Power and energy measurement
- Nee
Harmonics analysis/power quality
- Nee
With decibel measurement (dB)
- Nee
Relative value measurement
- Nee
Inductance measurement
- Nee
With conductivity measurement
- Nee
Continuity test
- Nee
Data hold
- Nee
Max. value storage
- Nee
Min. value storage
- Nee
Peak value memory
- Nee
High voltage test for motor windings
- Nee
True RMS measurement
- Nee
Duty cycle measurements
- Nee
Rotational speed measuring
- Nee
Meetwaardegeheugen
- Nee
Interface
- Nee
Bluetooth interface
- Nee
IR interface
- Nee
Automatic circuit breaker
- Nee
Explosion-tested version
- Nee
Calibration according to ISO/IEC 17025
- Nee
Calibration certificate according to DAkkS
- Nee
COFRAC certified
- Nee
