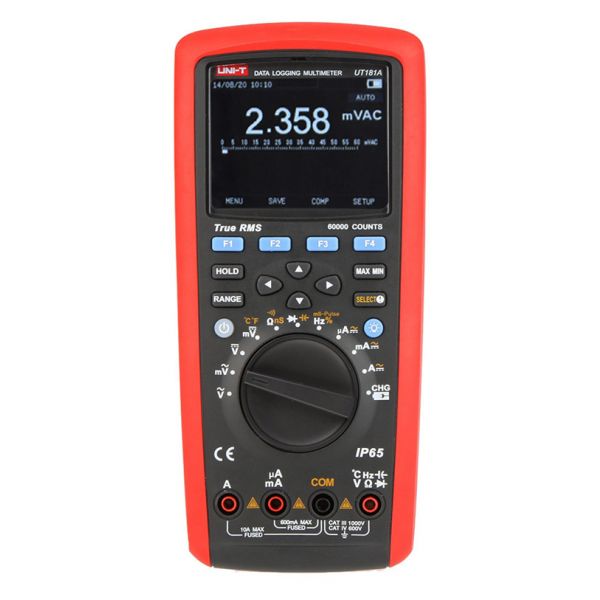

Uni-T UT181A Digitale multimeter True RMS datalogging
Artikelnr:
UNI32675
€ 453,00
excl. BTW
(
€ 548,13
Incl. BTW
)
excl. BTW
(
Incl. BTW
)
(
Incl. BTW
)
Omschrijving
UT181A TRMS datalogging multimeter
De UNI-T UT181A is een True RMS multimeter die gemeten data kan loggen (tot 20.000 datapunten), grafieken plotten, AC metingen maken tot 100kHz. Voorzien van een 3.5" kleurenscherm en heeft een behuizing die waterproof is (IP65).
Automatische en handmatige bereikkeuze
Bereik AC/DC spanning tot 1000V
Bereik AC/DC stroom tot 10A
Weerstand tot 60MΩ
Capaciteit tot 60mF
Frequentie: 10Hz ~ 60MHz
Temperatuur van -40°C ~ 1000°C (-40°F ~ 1832°F)
Duty Cycle: 10% ~ 90%
Datalogging: 20000
Instelbare achtergrondverlichting
Inclusief extra functies als o.a. diodetest, doorbeltest, MIN/MAX/AVG, Data Hold, Peak Hold, relatieve meting, USB interface, low battery indicatie, automatische uitschakeling, etc.
IP65
Veiligheidscategorie: CAT IV 600V / CAT III 1000V
In de doos:
UT181A TRMS datalogging multimeter
Meetsnoeren
Batterijen
USB interface
Software
Temperatuur adapter
2 Temperatuur probes
PC software
Draagtas
Engelstalige handleiding
Specificaties
Artikelnummer
- UNI32675
EAN
- 06935750518113
Indicatie
- Digitaal
Analogue bar graph display
- Ja
Scaling bar graph linear
- Ja
Scaling bar graph logarithmic
- Nee
Analogue bar graph display analogue/logarithmical
- Nee
Multiple display
- Nee
With display backlight
- Ja
Measuring range selection
- Manual/automatic
Lowest resolution, AC voltage
- 0.001 mV
Lowest resolution, DC voltage
- 0.001 mV
Lowest resolution, AC current
- 0.001 µA
Lowest resolution, DC current
- 0.001 µA
Temperature measurement
- Ja
Milliohm measurement with 4 wire technique (Kelvin connection)
- Nee
Lowest resolution, resistance
- 0.01 Ohm
Temperature measurement RTD
- Nee
Temperature measurement
- Ja
Temperature measurement TC
- Ja
Lowest resolution temperature
- 0.1 °C
Capacitance measurement
- Ja
Lowest resolution, capacitance
- 0.00001 µF
Frequency measurement
- Ja
Lowest resolution, frequency
- 0.01 Hz
Resistance test/diode test
- Ja
Nominal test voltage 10 V
- Nee
Nominal test voltage 50 V
- Nee
Nominal test voltage 100 V
- Nee
Nominal test voltage 250 V
- Nee
Nominal test voltage 500 V
- Nee
Nominal test voltage 1000 V
- Nee
Cable length measurement
- Nee
Cable symmetry testing for two wire connections a-b-E
- Nee
Power and energy measurement
- Nee
Harmonics analysis/power quality
- Nee
With decibel measurement (dB)
- Ja
Relative value measurement
- Ja
Inductance measurement
- Nee
With conductivity measurement
- Ja
Continuity test
- Ja
Data hold
- Ja
Max. value storage
- Ja
Min. value storage
- Ja
Peak value memory
- Ja
High voltage test for motor windings
- Nee
True RMS measurement
- Ja
Duty cycle measurements
- Ja
Rotational speed measuring
- Nee
Meetwaardegeheugen
- Ja
Interface
- Ja
Bluetooth interface
- Nee
IR interface
- Nee
Automatic circuit breaker
- Nee
Max. voltage measuring circuit category
- 600 V
Explosion-tested version
- Nee
Degree of protection (IP)
- Other
Calibration according to ISO/IEC 17025
- Nee
Calibration certificate according to DAkkS
- Nee
COFRAC certified
- Nee
Max. resistance measuring range
- 60 MOhm
Max. voltage measuring range, DC
- 1000 V
Max. current measuring range, DC
- 10 A
Max. frequency measuring range
- 60000 kHz
Max. capacitance measuring range
- 60000 µF
Max. current measuring range, AC
- 10 A
Max. voltage measuring range, AC
- 1000 V
Max. temperature measuring range
- 1000 °C
Measuring circuit category
- CAT IV
